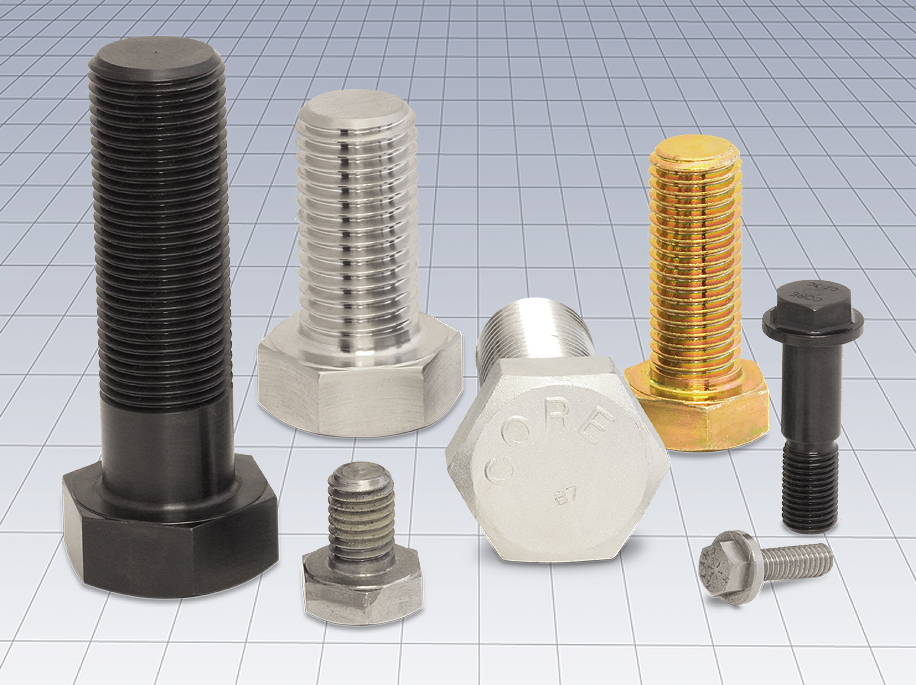

Hex Head Cap Screws

Size Capabilities
  Nom. Dia.: 1/4” (M6) to 5” (M125)
Head Options
  Regular hex per ASME-B18.2.1
  Heavy hex per ASME-B18.2.1
  Custom hex or round
  D-head
Body Options
  Standard body OD per ASME-B18.2.1
  Sized body OD to +/-0.0001”
  Oversized body OD (shoulder screw)
  Undersized body OD (reduced body)
  Undercuts
  Dog points

Socket Head Cap Screws

Size Capabilities
  Nominal Diameter: ¼” (M6) to 3” (M75)
Head Options
 •   Cylindrical head per ASME-B18.3
 •   Cylindrical head 1936 Series
 •   Stripper bolt
  Custom head and broach sizes
Body Options
  Standard body OD per ASME-B18.3
  Sized body OD to +/-0.0001”
  Oversized body OD (shoulder screw
  Undersized body OD (reduced body)
  Undercuts
  Dog points

12-Point Flange Screws

Size Capabilities
  Nominal Diameter: ¼” (M6) to 1½” (M36) Head Options
  12-pount head per IFI-115
  Flat head
  Custom flange and 12-pt sizes
Body Options
  Standard body OD per IFI-115
  Sized body OD to +/-0.0001”
  Oversized body OD (shoulder screw
  Undersized body OD (reduced body)
  Undercuts
  Dog points

Hex Nuts

Size Capabilities
  Nom. Dia.: ¼” (M6) to 5” (M125)
Hex Nut Types
  Regular hex per ASME-18.2.2
  Heavy hex per ASME-18.2.2
  Jam
  Flat
  Thick
  Coupling
  Slotted
  Castellated
  T.I.R. bearing surface
  Custom dimensions

Studs

Size Capabilities
 •   Nom. Dia.: ¼” (M6) to 5” (M125)
  Lengths up to 24 inche
Stud Types
  Double end
  Tap end
  Single end
  External wrenching
  Stud bolts
  Socket set scre
  Full threaded (TFL)
Body Options
  TFL per ASME-B18.31.2
  Std. body OD per ASME-B18.3.1.2
  Sized body OD to +/-0.0001”
  Oversized body OD (shoulder screw)
  Undersized body OD (reduced body)
  Undercuts

Anchor Rods

Size Capabilities
  Nom. Dia.: ½” (M12) to 5” (M125)
  Lengths up to 40 feet
Rod Types
  Double en
  Single end
  Full threaded
  Bent
Body Options
  Standard body per HR or CD bar tolerance
  Sized body OD to +/-0.0001”
  Fully threaded
